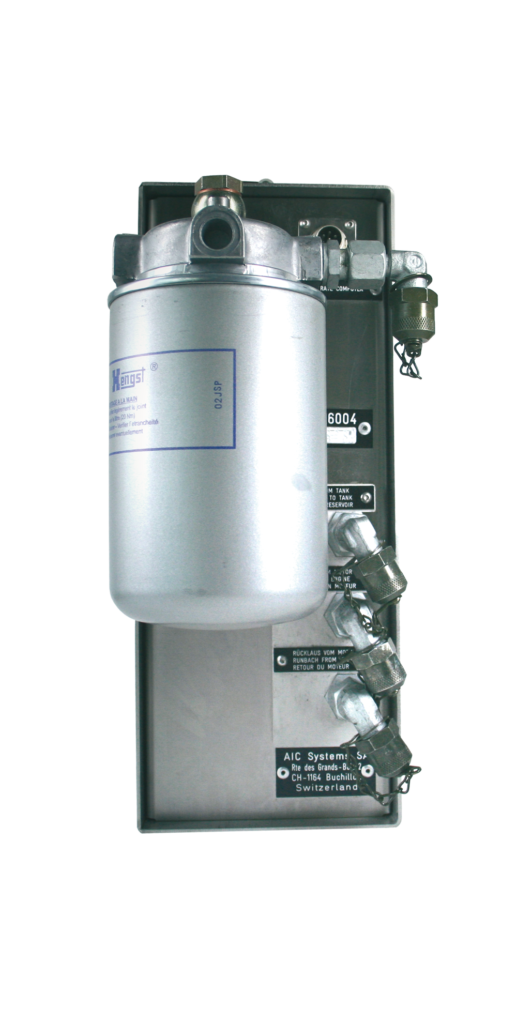

AIC 6000 Uniflowmaster

Accurately measuring fuel consumption, on mobile applications in real world situations, is a challenging task.

For more than 20 years, the AIC 6000 series has proven records of reliability and accuracy in all kind of situations. Either your test field is in the desert, the Himalaya or the clean and smooth European roads, the AIC 6000 series fuel consumption flowmeter will be your best partner.

This portable flow meter is designed for mobile applications in harsh environment. Based on the AIC original direct measuring principle, the 6000 UNIFLOWMASTER series offers precise and reliable fuel consumption measurement on any diesel engine.

Moreover, we updaded our products to be compatible with alternative fuels and bio diesel (FAME). Even HVO biodiesel (Hydrotreated Vegetable Oil), which is a form of renewable diesel that has been produced from vegetable fats and oils, will work perfecly with our units.

The unit integrates a powerful fuel pump and a high efficiency heat exchanger for temperature conditioning of the warmer diesel fuel returning from the engine.

The AIC 6000 UNIFLOWMASTER fuel flow meter is dedicated to mobile applications. Precise and reliable, its sturdiness promises you accurate results in all situations. Moreover, the AIC 6000 UNIFLOWMASTER is compatible with alternative fuels, bio diesel (FAME) and even HVO biodiesel (Hydrotreated Vegetable Oil).

It can be easily installed on trucks & buses, forestry & landscaping machines,

Accurate & easy to install

  • Proven volumetric mechanical meter
  • Suitable for engines up to 1000HP
  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range
  • NPN open collector, up to 10 mA / 32 VDC
Technical info
AIC 4004 Veritas fuel flow meter

Technology

  • Proven volumetric mechanical meter with AIC systems patented electronic
  • Unit supplied with a standard fuel filter
  • For installation on the suction side of the engine
  • To be installed in vertical position only (max 30° angle)
  • Works on all engines – (Cummins PT / Scania HPI motors, please contact us)

Accuracy

  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range

Pulse signal output

  • NPN open collector, up to 10 mA / 32 VDC
  • 0.7 ms pulse width
  • 2000 pulses per liter (6004 model)
  • 804 pulses per liter (6008 model)

Electrical

  • 12 / 24 V operation
  • Pump consumption: approx 50 Watts
  • 30 mA consumption
  • No interferences with existing vehicle on-board electronic (CAN-Bus)

Mechanical

  • Size: 39 x 14 x 31 cm (filter included)
  • Weight: 13,8 Kg – 14,3 Kg

The AIC 6000 UNIFLOWMASTER is perfectly suited for :

  • Road and proving ground testing
  • Product bench marking
  • Dynamometer testing

Every AIC 6000 UNIFLOWMASTER can be delivered with the following “ready to go” dedicated accessories :

  • BC 3329 Board Computer
  • DT 3080 GPS tracking system
  • Signal cable for AIC display or logger (10 m)
  • Signal cable third party logger (10 m)
  • Signal cable of different length (on request)
  • Universal connexion kit, including various fittings
  • Fuel hose or bio fuel hose
  • Transport case

The AIC 6000 UNIFLOWMASTER can be ordered with the following options :

  • Third party calibration certification
  • Bio fuel compatibility
  • 12V or 24V operation
