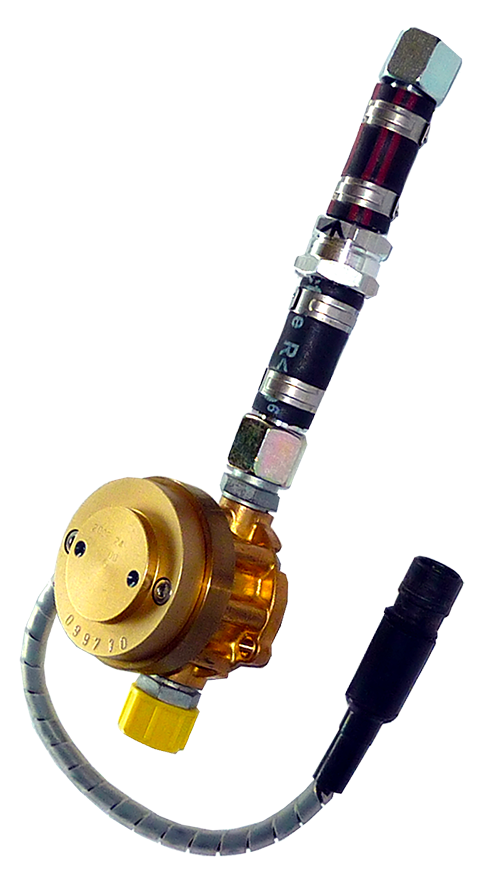

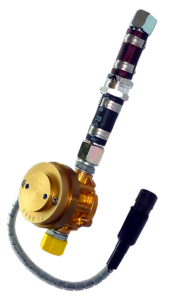

AIC 1200  fuel flow meter

The AIC-1200 series are on-line flow meters, specially designed to be mounted in engine compartment with little room conditions.

Made for pulsating liquids,the true consumption of the vehicle engine is measured by switching the return flow from the tank, directly to the fuel supply line.

Swiss made and reliable, the AIC-1200 series are dedicated to :

  • small and medium cars and vans, building machines, tractors, etc.
  • Stationery motors
  • Motor boats (in- or outboard)

Fitting to today’s industry expectations, they can measure gasoline / petrol, diesel, bio-fuel, liquid gas, but also vegetable oil and refrigerants (freon, etc.).

Accurate & easy to install

  • Proven volumetric mechanical meter
  • Works on all engines up to 700HP
  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range
  • NPN open collector, 8-28 VDC

Request a Quote for the AIC 1200

We offer an extensive range of positive displacement flowmeters and other mobile flow instrumentation to meet your application needs. Request a quote for the flow meters that meet your requirements or contact us to learn more about our fluid monitoring solutions.
