AIC 5000 Fuelflowmaster

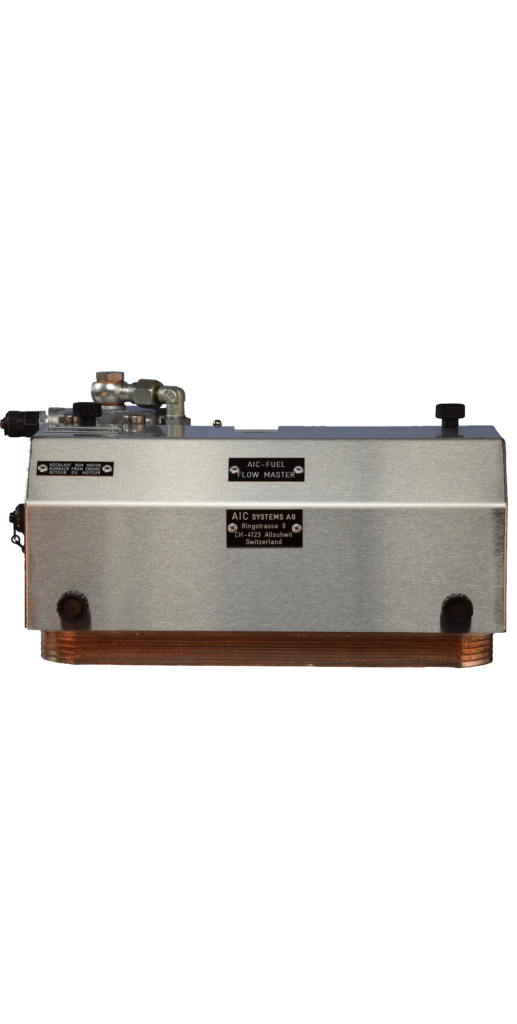

The AIC 5000 fuel consumption measuring system is a compact and cost competitive solution for accurately measuring fuel consumption on test bench applications.

For more than 20 years, the AIC 5000 Fuelflowmaster series has proven records of reliability and accuracy. The unit integrates a powerful fuel pump and a high efficiency heat exchanger for temperature conditioning of the warmer diesel fuel returning from the engine, thus reproducing the engine thermodynamic as it is in real world situations.

The 5000 unit is recommended for test benches and dynamoters applications. The AIC patented direct measurement technology gives an accuracy better than +/-1%. Feel free to contact us if you need more specific information. Our technical department is waiting for you !

Accurate & easy to install

  • Proven volumetric mechanical meter
  • Suitable for engines up to 1000HP
  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range
  • NPN open collector, up to 10 mA / 28 VDC
Technical info
AIC 4004 Veritas fuel flow meter

Technology

  • Proven volumetric mechanical meter with AIC systems patented electronic
  • Horizontal mounting position recommended, inclination up to 30° possible
  • Works on all engines

Accuracy

  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range

Pulse signal output

  • NPN open collector, up to 10 mA / 28 VDC
  • 0.7 ms pulse width
  • 2000 pulses per liter (5004 model)
  • 804 pulses per liter (5004 model)

Electrical

  • 12 / 24 V operation
  • 30 mA consumption
  • No interferences with existing vehicle on-board electronic (CAN-Bus)

Mechanical

  • Stainless steel housing
  • Size: 36 x 28 x 19 cm (filter included)
  • Weight: 9.6 Kg – 10,1 Kg

The AIC 5000 FUELFLOWMASTER is perfectly suited for :

  • Test bench
  • Engine test cell
  • Dynamometer

Every AIC 5000 FUELFLOWMASTER can be delivered with the following “ready to go” dedicated accessories :

  • BC 3329 Board Computer
  • DT 3080 GPS tracking system
  • Signal cable for AIC display or logger (10 m)
  • Signal cable third party logger (10 m)
  • Signal cable of different length (on request)
  • Universal hydraulic connexion kit, including various fittings
  • Fuel hose
  • Transport case

The AIC 5000 FUELFLOWMASTER can be ordered with the following options :

  • Third party calibration certification
  • Bio fuel compatibility
