AIC 8000 Big Brother

Accurately measuring consumption on mobile applications in real world situations is a very challenging task.

The AIC 8000 Big Brother series has been specifically designed to respond to this challenging task. The AIC 8000 Big Brother series has proven records of reliability and accuracy in all kind of situations and environment. Either your test field is in the desert, or the Pacific Ocean, the AIC 8000 Big Brother series fuel consumption flowmeter will be your reliable and accurate fuel consumption measuring system.

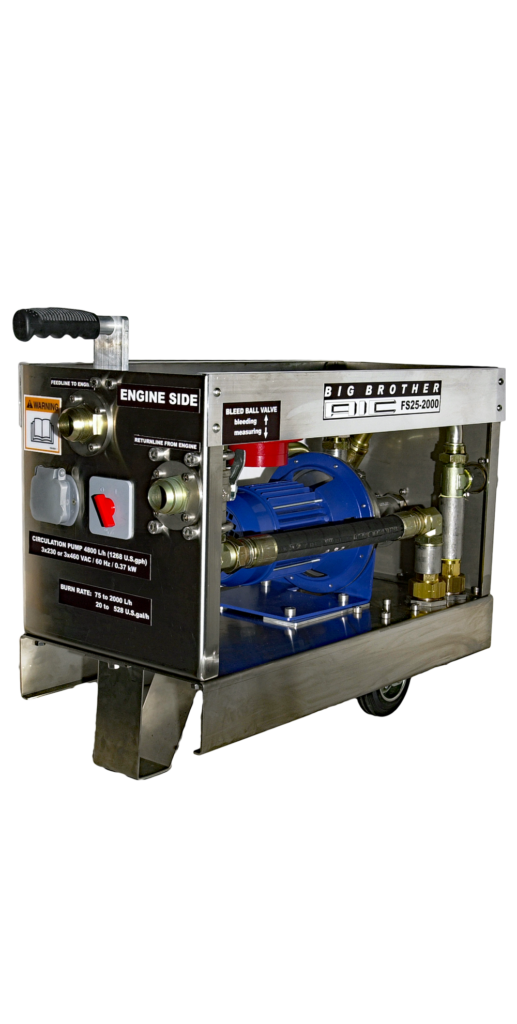

This portable flowmeter is designed for mobile applications in harsh environment. Based on the AIC original direct measuring principle, the 8000 Big Brother fuel flow meter offers precise and reliable fuel consumption measurement on any diesel engine.

The unit integrates a powerful fuel pump and a high efficiency heat exchanger for temperature conditioning of the warmer diesel fuel returning from the engine.

Mounted on rollers, it can be easily carried from a location to the next.

Accurate & easy to install

  • Proven volumetric mechanical meter
  • Suitable for engines up to 11000HP
  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range
  • NPN open collector, up to 10 mA / 32 VDC
Technical info
AIC 4004 Veritas fuel flow meter

Technology

  • Proven volumetric mechanical meter with AIC systems patented electronic
  • Unit supplied with washable fuel filter
  • For installation on the suction side of the engine
  • Complete system installed on a trolley with wheels
  • Works on all engines

Accuracy

  • Accuracy better than +/- 1 % over the range
  • Repeatability better than +/- 0.2 % over the range

Pulse signal output

  • NPN open collector, up to 10 mA / 32 VDC
  • 0.7 ms pulse width
  • 833 pulses per liter (8015 model)
  • 278 pulses per liter (8020 model)
  • 100 pulses per liter (8025 model)

Electrical

  • 230 VAC 1 phase operation for pump
  • Pump consumption: approx 600 Watts
  • 12 / 24 VDC for flow sensor
  • No interferences with existing vehicle on-board electronic (CAN-Bus)

Mechanical

  • Size: 950 x 330 x 580 cm
  • Weight: 58.0 Kg – 60.0 Kg

The AIC 8000 Big Brother is perfectly suited for :

  • Road and proving ground testing
  • Marine testing
  • Product bench marking
  • Dynamometer testing

Every AIC 8000 Big Brother can be delivered with the following “ready to go” dedicated accessories :

The AIC 8000 Big Brother can be ordered with the following options :

  • Third party calibration certification
  • Bio fuel compatibility (special seals)
